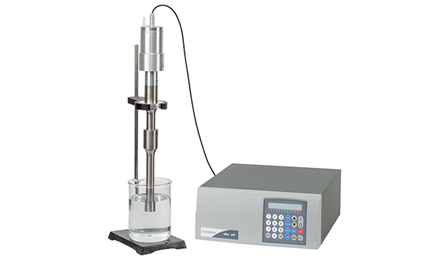

VCX1500
Sonics ultrasonic disperser
1500W power, standard swing arm processing capacity of 20L.

SONICS VCX1500 ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).

Product Introduction
SONICS VCX1500 Sonics ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).

Product Features
◆Batch processing of up to 20 liters
◆Energy and temperature set-point control
◆Automatic tuning
◆Digital metering
◆Full-featured process timer
◆Remote processing capability

Technical Parameters
Model:	VCX 1500
Frequency:	20KHz
Power:	1500W
Standard Swing Arm:	Φ25mm
Standard Swing Arm Length:	230mm
Standard Swing Arm Processing Capacity:	20L
Swing Arm Overall Dimensions:	178 x 380 x 463.5 mm
Swing Arm Material:	Ti-6Al-4V Titanium Alloy
Optional Swing Arm:	Φ25mm
Swing Arm Weight:	1600g
Swing Arm Cable Length:	3m
Duty Cycle:	1-99%
Power Adjustment Range:	Continuously adjustable (15-1500w)
Time Interval:	0.1-99.9s
Temperature Protection Setting:	Available
Power Amplitude Display:	Available
Operating Mode:	Pulse/Continuous
Power Supply:	220/110V 50Hz/60Hz or Unless otherwise specified, the power requirements shall be sent at 117V, 50/60Hz.
Net Weight:	9.5kg
Main Unit + Transducer Weight:	10.18kg

Color Page Category
VCX 1500 Single Page
VCX 1500 User Manual
Sonics Comprehensive Brochure
Related Accessories
Other Accessories

Related products
Name:	Model:
Sonics ultrasonic disperser	VCX1500
Sonics ultrasonic liquid processor	VCX750
Sonics ultrasonic processors	VC750

Product List

VCX1500	Unit
Host Machine	Unit
Toolbox	set
Support Bracket	Set
Temperature sensor	piece
User manual	copy

Description: 1; 1; Optional; Optional; 1
